Which of the following logic gate is shown in the given Graphic Symbol? (where, A andB = inputs, x = output)

3532Medium DSSSB TGT Computer Science 0 replies

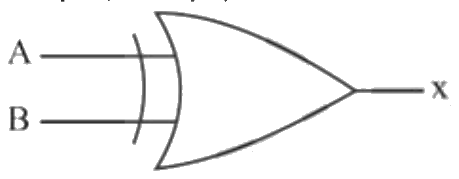

Which of the following logic gate is shown in the given Graphic Symbol? (where, A and

B = inputs, x = output)

Figure for question 167

  • AOR gate
  • BNAND gate
  • CNOR gate
  • DExclusive – OR (XOR) gate
Correct answer: D

Explanation

The given symbol with the extra curved line at the input is the XOR gate.
